The #7 Rub Down Technique by Mike Phillips
- Thread starter Mike Phillips
- Start date
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #42
Sure if you want to remove paint defects.
I'd recommend reading my original article on how to restore antique single stage paint. Look for the paragraph ar the beginning that has the word important in red text.
Foam cutting or foam polishing pad.
Question: What are you working on?
Mad Wax
New member
- Sep 26, 2014
- 326
- 0
Sure if you want to remove paint defects.
I'd recommend reading my original article on how to restore antique single stage paint. Look for the paragraph ar the beginning that has the word important in red text.
Foam cutting or foam polishing pad.
Question: What are you working on?
Thanks Mike for that info...working on a 2001 Tundra with the white single stage.
Dereksdtail
New member
- Jul 22, 2014
- 1,252
- 0
After a double #7 rub down and polish on a LTD, huge improvement but the hood was in baddd shape

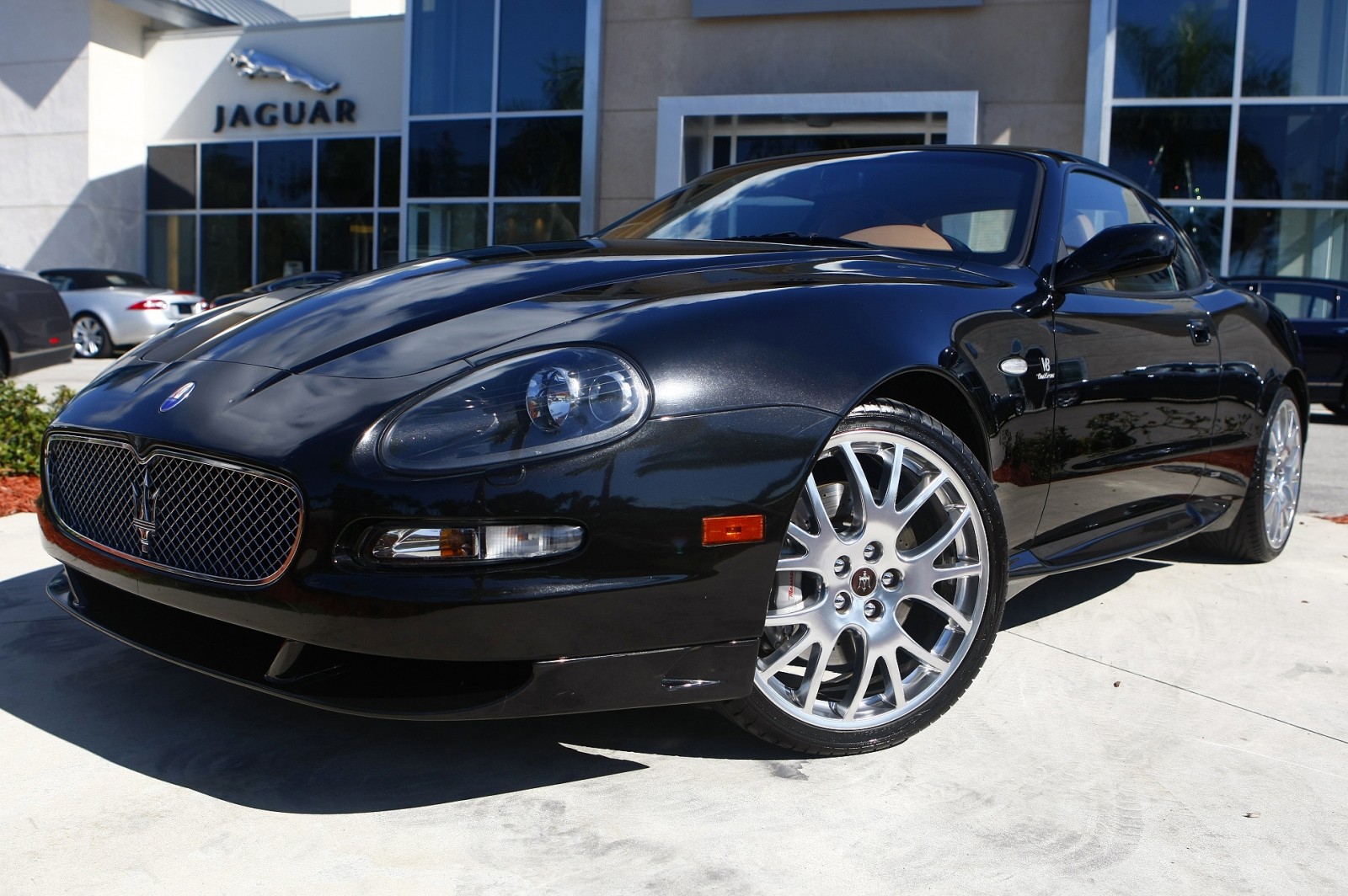

View attachment 51039

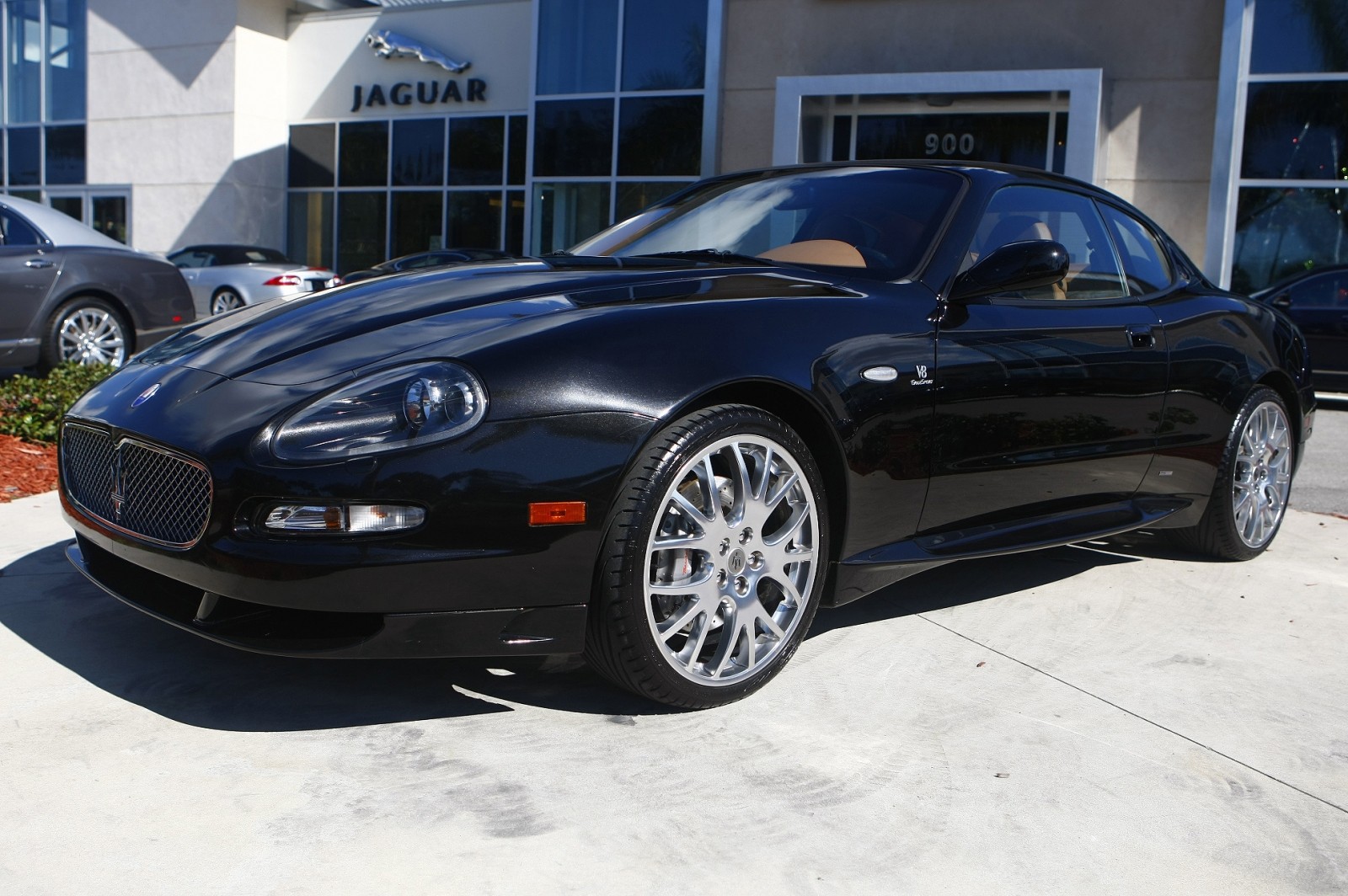

View attachment 51040
View attachment 51039
View attachment 51040
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #46
15 year old single stage paint. Some would consider this antique.
If it were me, I'd probably just cut this truck with a compound. If you want, apply the #7 AFTER all the machine polishing work and BEFORE sealing the paint assuming you're using either a wax or a paint sealant. If you're going to use a paint coating, then you can't use anything with oils.
Looking forward to the before and after pictures.
Mad Wax
New member
- Sep 26, 2014
- 326
- 0
15 year old single stage paint. Some would consider this antique.
If it were me, I'd probably just cut this truck with a compound. If you want, apply the #7 AFTER all the machine polishing work and BEFORE sealing the paint assuming you're using either a wax or a paint sealant. If you're going to use a paint coating, then you can't use anything with oils.
Looking forward to the before and after pictures.
Thanks again Mike for the advice...and I will do my best on the pics!
I've never tried those glazes on single stage paints, but I'm gonna go out on a limb here and say no, they won't do the job like #7 will. They are designed for modern paint with clearcoat, while #7 has been around forever and has special ingredients made for these older, single stage paints.
On the topic of applying #7 to modern clearcoat paints...
First it certainly won't hurt anything.
Second, how helpful it is depends on the age and condition of the clearcoat. The older the clearcoat and the worse condition the more it will help.
If a car is brand new and no hack detailer has scoured and opened up the top surface with zillions of scratches, then a new clearcoat finish is very impermeable. That means it's solid and oils will not penetrate into it they will just sit on the surface. So while applying #7 won't hurt anything it probably won't do much.
As paint ages it opens up. Do search on the word interstices. As a clearcoat ages and become more open then the application and working in of a coat of the #7 can help to restore clarity and workability of the paint.
Hope that helps...
hi mike, i applied the #7 with my hand like you said but now it won't come off, ive been washing it for an hour and a 1\2, do u have to use a special soap or something?
Knozzmoeking
New member
- Jan 20, 2016
- 57
- 0
I'm not Mike but from personal experience the #7 should be removed with clean terry cloth towels before you do anything else. When I've run across areas that were hard to remove either due to sun or wind, I've simply rewet that area with some additional #7 and then gone back to the clean terry cloth for removal. Hope that helps. In any case, the #7 should be removed before any attempts at washing. All IMO.
lol it was a joke bro i was trying to say i put it on with my hand like he said and i couldn't wash it off my hand as in the skin on my hand. sry bad joke i guess
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #52
To be honest, I would not have figured out what you wrote was joking or kidding around until your follow-up post stating so.
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #53
I think any oily product will make old single stage paint look good and even better. That's the nature of an oily product introduced to a dry chalky dull porous surface.
What other glazes, polishes or products by a zillion non-sensical names don't have are the proprietary Trade Secret Oils used in #7 which besides rejuvenating the paint also bring out the full richness of color. It has to do with the source of the specific oils used in this product and the pigments used to make old single stage paint.
I care not what anyone uses, heck there's a guy in the FB world that is alwasy saying #7 is nothing more than mineral oil but he's wrong.
Use what you like.
What I do is try to help people that has something that is IMPORTANT to them do everything they can to preserve it. The words something and it meaning antique single stage paint.
If you click the link below and read what I wrote in the paragraph where the word important is in bold red letters, this is what I'm talking about when it comes to helping others restore and preserve the paint on their whatever.
The Secret to Removing Oxidation and Restoring a Show Car Finish to Antique Single Stage Paints
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #54
***Update***
So far today, I have received 3 Private Messages on
How to restore single stage paint. I love it.
Most important...
The power in the after shots is created in the before shots
icture: icture: icture: icture: icture: icture: icture:
Why?
Because you cannot go back in time and get the before shots. Then it's just your WORD when you tell people how bad the paint was.
So take a few moments to stop whatever it is you're doing, read the above article for tips and then take some pictures.
Trust me on this.... been there... done that....
So far today, I have received 3 Private Messages on
How to restore single stage paint. I love it.
Most important...
The power in the after shots is created in the before shots
icture: icture: icture: icture: icture: icture: icture: Why?
Because you cannot go back in time and get the before shots. Then it's just your WORD when you tell people how bad the paint was.
So take a few moments to stop whatever it is you're doing, read the above article for tips and then take some pictures.
Trust me on this.... been there... done that....
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #55
I was just reading through this classic thread, actually a thread and information you cannot find anywhere else on the Internet.
I noticed I didn't include some pictures that show the single stage paint coming off the car as we did the paint correction steps or a link to the actual write-up for the work. My bad...
Here's a few pictures that tell the rest of the story,
Tools and pads
Compounding
For the major correction step, that is removing almost 50 years of swirls, scratches, water spots and oxidation we used the 3D AAT Rubbing Compound with the 7.5" Electrified White Sheepskin Final Polishing Pad on the FLEX XC 3401 VRG HD Dual Action Orbital Polisher.
The FLEX 3401 at this time is the only gear-driven orbital polisher on the market. It's German engineered and that means it's a super high quality tool that you can depend on for years of service duty. The gear-drive feature forces the pad to both oscillate and rotate and no matter how hard you push down or what the shape of the body panel is you're buffing you cannot make the pad stop oscillating or rotating and this means nothing can stop you from doing was I say,
Power through a detail job
And that's because the FLEX 3401 enables you do to high quality production work and high quality show car work faster than any free spinning tool simply due to the fact you can tackle curved panels and tight areas without the pad stalling out which means the pad isn't oscillating or rotating.
Electrified Wool Pad?
The word electrified means Lake Country has taken the extra step to electrify the wool fibers used to make this specific pad which removes the natural sharp barbs found on wool fibers creating a pad that cuts fast but finishes with less scouring of the paint. This is a real benefit when buffing thin, scratch-sensitive clearcoat finishes. It also means cleaning up after the compounding step with the polishing step will be faster and easier and require a less aggressive pad and product. That's win/win/win as you see Richard Rawlings say in his Gas Monkey Garage promos.
The Flex 3401 HD with a Lake Country 7.5" Electrified Wool Polishing Pad
Polishing
Anytime you cut paint with a fiber pad, ANY type of fiber pad everything from coarse fast wool cutting pads to soft microfiber dual action polisher pads the fibers act as a type of abrasive. This means the fibers, like the abrasives in a compound, are cutting the paint. For this reason for a more perfect finish you must follow any fiber pad compounding step with a less aggressive polishing step using a less aggressive product and a less aggressive pad.
For the secondary polishing step for this 1969 Ford Thunderbird we used the 3D AAT Finishing Polish
on a Autogeek ThinPro white foam polishing pad on the FLEX XCE 7 free spinning orbital polishers. Unlike the FLEX 3401, which is gear driven, the XCE 7 is a free spinning orbital polisher what offers a 15 mm orbit stroke length. The results from switching from a powerful gear-driven orbital polisher to a free spinning, large stroke orbital polisher is a not only a dramatically safer polishing process but a polishing action that will create a super high gloss finish. This second polishing step removes any haze in the paint left by the much more aggressive compounding step and maximizes gloss and clarity to take this 47 year-old paint to its maximum potential.
Autogeek's ThinPro padsIt's a fact that thin pads rotate and oscillate better than thick pads on free spinning tool. I can remember when all we had were THICK foam pads borrowed from the rotary buffer world for use with orbital buffers and while they kind of worked they severely lacked in pad rotation performance.
The Autogeek ThinPro pads are only 11/16" or 17.5mm thin. That's THIN! And these are the perfect companion pad for the FLEX XCE 7 free spinning orbital polisher. They are available in 5 different options from super coarse for fast correction to super soft for machine waxing or jeweling.
Then to seal the paint we used the 3D Carnauba Paste Wax with an Autogeek 6.5" ThinPro red waxing pad on the same tool we used for the secondary polishing step the FLEX XCE 7 free spinning orbital polisher.
The combination of pre-soaking the antique, dry brittle paint with the TS oils found in the #7 Show Car Glaze followed by the methodical machine compounding, polishing and waxing process took an antique car with antique paint that most people would have assumed would have to be repainted and restored a finish that looks like the car just rolled out of the dealership show room in 1969.
I noticed I didn't include some pictures that show the single stage paint coming off the car as we did the paint correction steps or a link to the actual write-up for the work. My bad...
Here's a few pictures that tell the rest of the story,
Tools and pads
Compounding
For the major correction step, that is removing almost 50 years of swirls, scratches, water spots and oxidation we used the 3D AAT Rubbing Compound with the 7.5" Electrified White Sheepskin Final Polishing Pad on the FLEX XC 3401 VRG HD Dual Action Orbital Polisher.
The FLEX 3401 at this time is the only gear-driven orbital polisher on the market. It's German engineered and that means it's a super high quality tool that you can depend on for years of service duty. The gear-drive feature forces the pad to both oscillate and rotate and no matter how hard you push down or what the shape of the body panel is you're buffing you cannot make the pad stop oscillating or rotating and this means nothing can stop you from doing was I say,
Power through a detail job
And that's because the FLEX 3401 enables you do to high quality production work and high quality show car work faster than any free spinning tool simply due to the fact you can tackle curved panels and tight areas without the pad stalling out which means the pad isn't oscillating or rotating.
Electrified Wool Pad?
The word electrified means Lake Country has taken the extra step to electrify the wool fibers used to make this specific pad which removes the natural sharp barbs found on wool fibers creating a pad that cuts fast but finishes with less scouring of the paint. This is a real benefit when buffing thin, scratch-sensitive clearcoat finishes. It also means cleaning up after the compounding step with the polishing step will be faster and easier and require a less aggressive pad and product. That's win/win/win as you see Richard Rawlings say in his Gas Monkey Garage promos.
The Flex 3401 HD with a Lake Country 7.5" Electrified Wool Polishing Pad
Polishing
Anytime you cut paint with a fiber pad, ANY type of fiber pad everything from coarse fast wool cutting pads to soft microfiber dual action polisher pads the fibers act as a type of abrasive. This means the fibers, like the abrasives in a compound, are cutting the paint. For this reason for a more perfect finish you must follow any fiber pad compounding step with a less aggressive polishing step using a less aggressive product and a less aggressive pad.
For the secondary polishing step for this 1969 Ford Thunderbird we used the 3D AAT Finishing Polish
on a Autogeek ThinPro white foam polishing pad on the FLEX XCE 7 free spinning orbital polishers. Unlike the FLEX 3401, which is gear driven, the XCE 7 is a free spinning orbital polisher what offers a 15 mm orbit stroke length. The results from switching from a powerful gear-driven orbital polisher to a free spinning, large stroke orbital polisher is a not only a dramatically safer polishing process but a polishing action that will create a super high gloss finish. This second polishing step removes any haze in the paint left by the much more aggressive compounding step and maximizes gloss and clarity to take this 47 year-old paint to its maximum potential.
Autogeek's ThinPro padsIt's a fact that thin pads rotate and oscillate better than thick pads on free spinning tool. I can remember when all we had were THICK foam pads borrowed from the rotary buffer world for use with orbital buffers and while they kind of worked they severely lacked in pad rotation performance.
The Autogeek ThinPro pads are only 11/16" or 17.5mm thin. That's THIN! And these are the perfect companion pad for the FLEX XCE 7 free spinning orbital polisher. They are available in 5 different options from super coarse for fast correction to super soft for machine waxing or jeweling.
Then to seal the paint we used the 3D Carnauba Paste Wax with an Autogeek 6.5" ThinPro red waxing pad on the same tool we used for the secondary polishing step the FLEX XCE 7 free spinning orbital polisher.
The combination of pre-soaking the antique, dry brittle paint with the TS oils found in the #7 Show Car Glaze followed by the methodical machine compounding, polishing and waxing process took an antique car with antique paint that most people would have assumed would have to be repainted and restored a finish that looks like the car just rolled out of the dealership show room in 1969.
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #56
And here's the link to the full write-up - TONS of information in this single thread.
How to restore a Barn Find - 1969 Ford Thunderbird - #7 Rub Out + FLEX = 3D products
Here's just one little tidbit in this thread,
Using Iron X on vinyl tops and then machine scrubbing the top
The Aggressive Wash
Normally I never wash classics with running water as a professional practice and a professional courtesy to the owner. Why? Because water can cause rust and I don't want to get water into places I can't physically dry. This was an exception because so much of the car was so dirty including dirt that was impacted into the grain of the vinyl top and also a heavy dirt film over all the the rest of the car including paint, glass, chrome trim and the hubcaps.
Process
Chemical Decontamination
First up we sprayed the vinyl top down with Iron X. If there's any iron or metal contamination on the top we'll see the bleeding effect of the iron contamination turning red.
The paint was also treated with Iron X after scrubbing and rinsing the top.
Foam Gun and Microfiber Chenille Wash Mitt
The paint was washed using a foam gun and microfiber chenille wash mitts to remove the iron contamination plus the dirt film. (no pictures for this step).
Mechanical Decontamination
The hard surface were then foamed again with the foam gun and then rubbed own using the Griot's Garage Fast Surface Prep Mitt. The paint had a heavy build up of some form of bonded contaminants and these were removed using the Griot's Fast Surface Prep Mitt and then the car as rinsed a third time.
Cyclo Aqua Upholstery Brush attached to a Porter Cable 7424XP
The Iron X bleeding-effect that indicates iron contamination
How to restore a Barn Find - 1969 Ford Thunderbird - #7 Rub Out + FLEX = 3D products
Here's just one little tidbit in this thread,
Using Iron X on vinyl tops and then machine scrubbing the top
The Aggressive Wash
Normally I never wash classics with running water as a professional practice and a professional courtesy to the owner. Why? Because water can cause rust and I don't want to get water into places I can't physically dry. This was an exception because so much of the car was so dirty including dirt that was impacted into the grain of the vinyl top and also a heavy dirt film over all the the rest of the car including paint, glass, chrome trim and the hubcaps.
Process
Chemical Decontamination
First up we sprayed the vinyl top down with Iron X. If there's any iron or metal contamination on the top we'll see the bleeding effect of the iron contamination turning red.
The paint was also treated with Iron X after scrubbing and rinsing the top.
Foam Gun and Microfiber Chenille Wash Mitt
The paint was washed using a foam gun and microfiber chenille wash mitts to remove the iron contamination plus the dirt film. (no pictures for this step).
Mechanical Decontamination
The hard surface were then foamed again with the foam gun and then rubbed own using the Griot's Garage Fast Surface Prep Mitt. The paint had a heavy build up of some form of bonded contaminants and these were removed using the Griot's Fast Surface Prep Mitt and then the car as rinsed a third time.
Cyclo Aqua Upholstery Brush attached to a Porter Cable 7424XP
The Iron X bleeding-effect that indicates iron contamination
2wookies
New member
- Jul 24, 2015
- 367
- 0
Had to bump this, got a buddy with an old Spitfire that’s gonna try this.
My crack at the technique
The #7 rubdown technique on a 51 Mercury
My crack at the technique
The #7 rubdown technique on a 51 Mercury
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #58
I've owned 6 British Sports cars when I was younger and went through the "British Sports Car Phase" of my life, 2 of these were Triumph Spitfires.
Besides my own British sports cars, I've worked on a few and here's my experience,
Generally speaking - they didn't have what I would consider "good paint". And by this, it just didn't seem as though the factory paint on some of the Spitfires and MBGs I've worked on polished-up as good as paint systems from other manufactures.
I like to give the benefit of the doubt so it could be my experiences were the exception to the rule and these cars have perfectly good and normal paint that polishes-up great.
And you done did good!
Mike Phillips
Active member
- Dec 5, 2022
- 51,004
- 6
- Thread starter
- #59
Please tell him to get a few GREAT before pictures.
It's the before pictures that count the most. Here's my article on this topic,
The power in the after shots is created in the before shots
In the picture below, if you DIDN'T know how bad the paint was BEFORE the paint correction, you wouldn't have as much appreciation for the AFTER results.
It's the before shot that gives perspective. It's the before shot that provides context.
The power in the after picture is created in the before picture -Mike Phillips
Before starting any detailing project, take the time to capture the before condition pictures. Take my word for it, you'll regret it if you don't.
Plus - how can anyone truly know how bad the paint, or the interior, or the engine compartment was before you worked your magic. Without good before pictures, you saying how bad it was is just words. Sure you may have a great reputation but like the saying goes,
A picture tells a thousand words
You have one chance to get the before shots...
In my life I've had the good fortune to work on a lot of cool cars and with a lot of cool people for which I'm always very thankful for. I've also had the good fortune to work on a lot of very neglected cars, some special interest and some not but to the owner it was always important and when it's important to the owner then it's important to me.
One of the biggest problems with capturing a great before shot is someone, not understanding the value in the before shot and all it's ugliness, will take some kind of paint polishing product and make a clean, shiny spot in an otherwise really neglected and ugly panel like the hood or the trunk-lid.
It's this single shiny spot that ruins the dramatic "before" pictures.
These types of panels make the best before and after shots because they are usually large, they are usually in the worst shape, you can look down on them, or in this case take an overhead shot of them, and the hood is specifically the panel that gets the most attention from car enthusiasts.
Also, after you polish out a neglected car you can ALWAYS get the after shots, just walk out to the garage and take some pictures. But you can NEVER go back in time to take the "before shots.
So over the years when I've discussed doing future extreme makeovers on project cars with the owners I've always stressed the importance of not touching the paint till AFTER we get the before shots.
It's just so uncanny that if you don't bring this topic up, then sometime before you arrive at the car's location or the car is brought to your location, someone and their good intentions will do you the favor of rubbing something smack dab in the middle of the hood and make a shiny spot and ruin the before pictures.
Anyway, a couple of years ago while scheduling an Extreme Makeover, I wrote this little sentence that I think states the concept very clearly and wanted to post it in it's own thread with a time stamp for others to learn from and hopefully explain the "why" behind the idea...
So here it is and you can quote me on this,
"If you ever do an extreme makeover on a car or some other project, remember the power in the after shots is created in the before shots"
So do your best to get GREAT before shots before bringing your hand or your polisher down onto the paint and making a shiny spot. And try to educate the owner if there's going to be time passing before the project is scheduled to also not take any action until after the before shots area captured. Just as a precaution. Better safe than sorry.
Often times I'll see a great write-up on a spectacular and dramatic before and after project and the detailer will say something like,
"Sorry I didn't get any before pictures"
This happens all the time. It's happened to me because I didn't have a camera handy or the batteries were dead.
So just a note to anyone reading this, if you ever do an extreme makeover on something cool or special interest, remember, the power is in the before pictures, so make plans to capture them before buffing on the car.
It's the before pictures that count the most. Here's my article on this topic,
The power in the after shots is created in the before shots
In the picture below, if you DIDN'T know how bad the paint was BEFORE the paint correction, you wouldn't have as much appreciation for the AFTER results.
It's the before shot that gives perspective. It's the before shot that provides context.
The power in the after picture is created in the before picture -Mike Phillips
Before starting any detailing project, take the time to capture the before condition pictures. Take my word for it, you'll regret it if you don't.
Plus - how can anyone truly know how bad the paint, or the interior, or the engine compartment was before you worked your magic. Without good before pictures, you saying how bad it was is just words. Sure you may have a great reputation but like the saying goes,
A picture tells a thousand words
You have one chance to get the before shots...
In my life I've had the good fortune to work on a lot of cool cars and with a lot of cool people for which I'm always very thankful for. I've also had the good fortune to work on a lot of very neglected cars, some special interest and some not but to the owner it was always important and when it's important to the owner then it's important to me.
One of the biggest problems with capturing a great before shot is someone, not understanding the value in the before shot and all it's ugliness, will take some kind of paint polishing product and make a clean, shiny spot in an otherwise really neglected and ugly panel like the hood or the trunk-lid.
It's this single shiny spot that ruins the dramatic "before" pictures.
These types of panels make the best before and after shots because they are usually large, they are usually in the worst shape, you can look down on them, or in this case take an overhead shot of them, and the hood is specifically the panel that gets the most attention from car enthusiasts.
Also, after you polish out a neglected car you can ALWAYS get the after shots, just walk out to the garage and take some pictures. But you can NEVER go back in time to take the "before shots.
So over the years when I've discussed doing future extreme makeovers on project cars with the owners I've always stressed the importance of not touching the paint till AFTER we get the before shots.
It's just so uncanny that if you don't bring this topic up, then sometime before you arrive at the car's location or the car is brought to your location, someone and their good intentions will do you the favor of rubbing something smack dab in the middle of the hood and make a shiny spot and ruin the before pictures.
Anyway, a couple of years ago while scheduling an Extreme Makeover, I wrote this little sentence that I think states the concept very clearly and wanted to post it in it's own thread with a time stamp for others to learn from and hopefully explain the "why" behind the idea...
So here it is and you can quote me on this,
"If you ever do an extreme makeover on a car or some other project, remember the power in the after shots is created in the before shots"
So do your best to get GREAT before shots before bringing your hand or your polisher down onto the paint and making a shiny spot. And try to educate the owner if there's going to be time passing before the project is scheduled to also not take any action until after the before shots area captured. Just as a precaution. Better safe than sorry.
Often times I'll see a great write-up on a spectacular and dramatic before and after project and the detailer will say something like,
"Sorry I didn't get any before pictures"
This happens all the time. It's happened to me because I didn't have a camera handy or the batteries were dead.
So just a note to anyone reading this, if you ever do an extreme makeover on something cool or special interest, remember, the power is in the before pictures, so make plans to capture them before buffing on the car.
VELMA88
New member
- Aug 28, 2021
- 1
- 0
I just purchased a 1951 Ford Victoria with single stage paint, so I read this old thread with special interest. Instructions are quite thorough but nowhere did I read anything about clay barring the vehicle. I am assuming that would be a good place to start?View attachment 74259
